70FXA – IP65 OR IP66/IP67 UP TO 32 BIT UP TO 14 BITS PER TURN X 18 BITS MT

Please click here to download the 70FXA Datasheet logo-adobe-pdf-40x

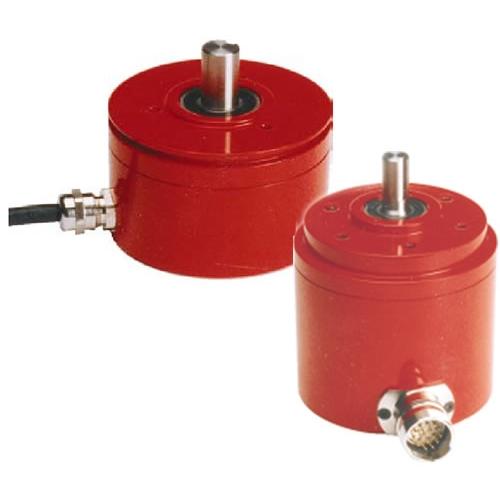

The 70SSI Series (in 70mm Frame Size) is an innovative Low Cost Multiturn absolute shaft encoder, machined from solid aluminium. It can be factory programmed up to a total of 32 bit resolution (14 bits per turn x 18 bit turns).  For further information, click Product Enquiry below.

Categories: ,

Description

Body: Precision Machined Aluminium
Cover: Precision Machined Aluminium
Shaft: Stainless Steel
Bearings: Ballraces
Shaft Sealing: IP65: Sealed front bearing
IP66/IP67: Specialist shaft seal
Protection: Options:
IP65 or
IP66 / IP67
Operating Temp: -20 to +85°C (-40° at extra cost)
Maximum Speed: 6000 RPM for IP65
3000 RPM for IP66 / IP67
Inertia: 100gcm2 (typical)
Shaft Loading: Axial = 10N (max)
Radial = 10N (max)
Cable: Screened, oil and salt water proof
Current Consumption: 50 to 100mA
Please click here to download the 70FXA Datasheet logo-adobe-pdf-40x
