90TA – IP65 OR IP66/IP67 UP TO 13 BIT (GRAY / BINARY / BCD)

Please click here to download the 90TA Datasheet  logo-adobe-pdf-40x

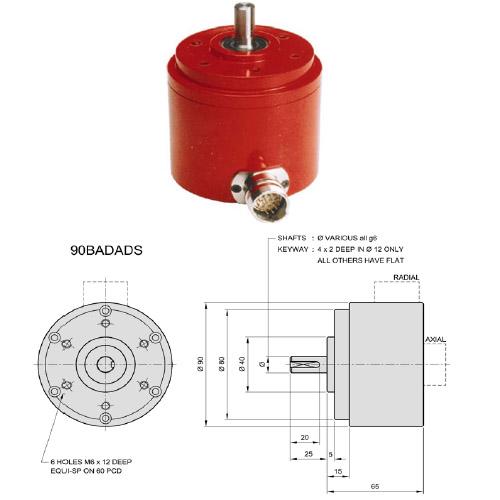

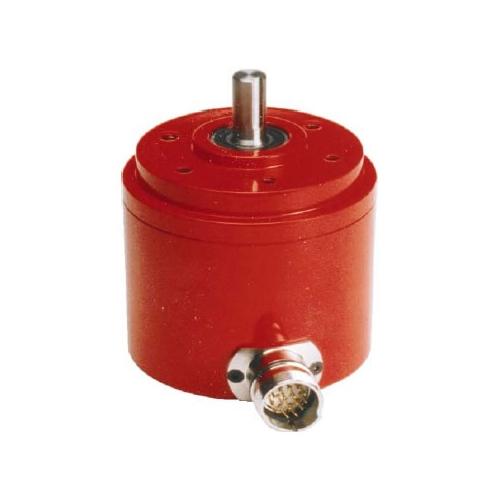

The 90TA Series is a precision, heavy-duty absolute shaft encoder, machined from solid aluminium. Its frame size of 90mm makes the encoder compatible with other industrial formats.  For further information, click Product Enquiry below.

Description

Body: Precision Machined Aluminium
Cover: Precision Machined Aluminium
Shaft: Stainless Steel
Bearings: Ballraces
Shaft Sealing: IP65: Sealed front bearing
IP66/IP67: Specialist shaft seal
Protection: Options:
IP65 or
IP66 / IP67
Operating Temp: -20 to +85°C (depending on model)
Maximum Speed: 6000 RPM for IP65
3000 RPM for IP66 / IP67
Inertia: 100gcm2 (typical)
Shaft Loading: Axial = 10N (max)
Radial = 10N (max)
Cable: Screened, oil and salt water proof
Impulse Frequency: Up to 100KHz (depending on model)
Current Consumption: Less than 150mA (typical – without load)
