60HA – (ALUMINUM)

Please click here to download the 60HA Datasheet  logo-adobe-pdf-40x

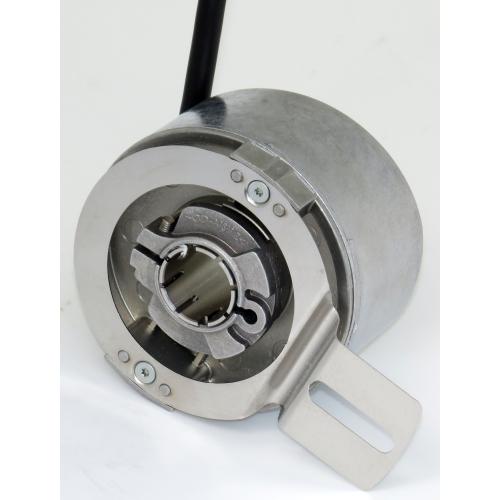

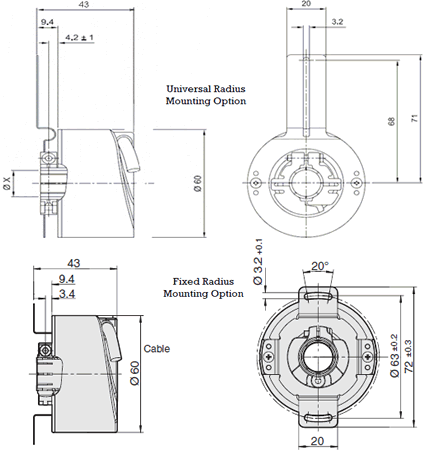

The 60HA encoder is designed to fit directly on to motor shafts, or any shaft where position, direction, or velocity information is needed. The advanced electronics provides superior performance and high noise immunity. The encoder features a simple clamp mount for easy mounting over a large range of shaft sizes, whilst the universal anti-rotation flex mount maintains housing stability. Alternatively, if body rotation is required, there is the option of rotatable mounting on a fixed radius instead.  For further information, click Product Enquiry below.

Description

Protection: IP65 (higher on request)
Operating Temp: -20°C to +100°C
Maximum Speed: 7.500 rpm continuous
Torque: 0.008 Nm
Shaft Loading: Flexible Mounted (supplied)
Cable: Screened, oil and salt water
Impulse Frequency: 800KHz (Max)
Current Consumption: 40mA without load
