58BA – (ALUMINIUM)

Please click here to download the 58BA Datasheet logo-adobe-pdf-40x

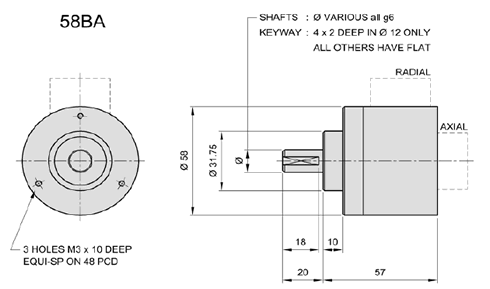

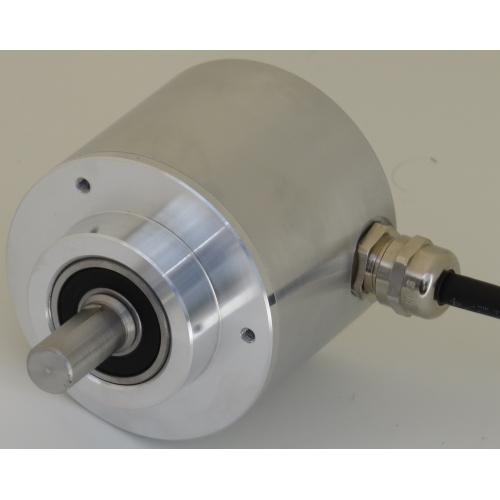

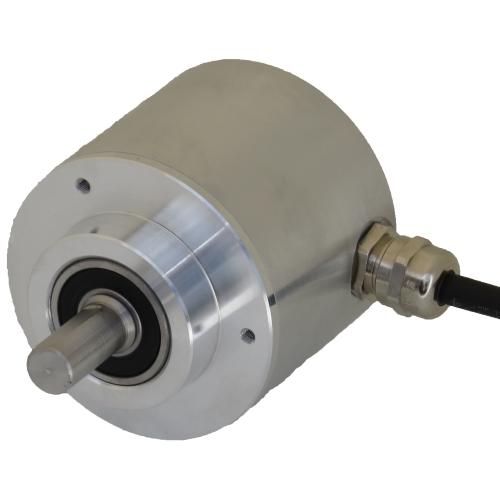

The 58BA Series is a precision shaft encoder machined from aluminium. Its small frame size of 58mm together with its wide range of optional flanges provides the user with flexibility where space may be limited.  For further information, click Product Enquiry below

Categories: ,

Description

Body:Precision Machined Aluminium
Cover:Precision Machined Aluminium (Powder Coated)
Shaft:Stainless Steel
Bearings:Ballraces
Shaft Sealing:Sealed front bearing (shafts seals are available on request)
Protection:IP65
Operating Temp:-20 to +85°C (depending on model)
Maximum Speed:6000 RPM (Higher on request)
Torque:2.35Ncm (typical)
Inertia:100gcm2 (typical)
Shaft Loading:Axial = 10N (max)
Radial = 10N (max)
Cable:Screened, oil and salt water proof
Impulse Frequency:Up to 300KHz (depending on model)
Current Consumption:60mA typical
Please click here to download the 58BA Datasheet logo-adobe-pdf-40x
