90BA – (ALUMINIUM)

Please click here to download the 90BA Datasheet logo-adobe-pdf-40x

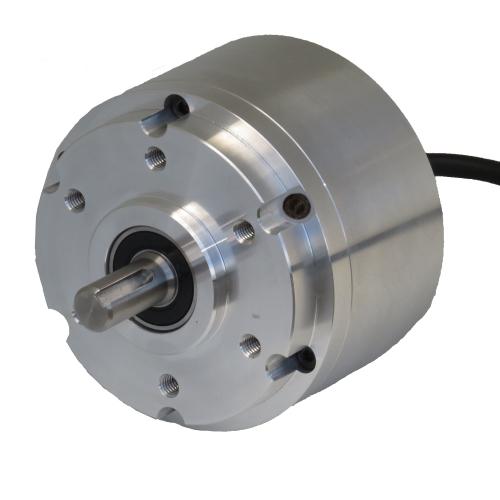

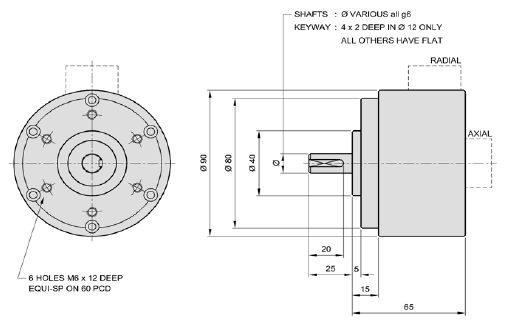

The 90BA Series is a precision, heavy-duty shaft encoder, machined from aluminium. Its frame size of 90mm makes the encoder compatible with other industrial formats.  For further information, click Product Enquiry below.

Description

Body:Precision Machined Aluminium
Cover:Precision Machined Aluminium (Powder Coated)
Shaft:Stainless Steel
Bearings:Ballraces
Shaft Sealing:Sealed front bearing (shafts seals are available on request)
Protection:IP65
Operating Temp:-20 to +85°C (depending on model)
Maximum Speed:6000 RPM (Higher on request)
Torque:2.35Ncm (typical)
Inertia:100gcm2 (typical)
Shaft Loading:Axial = 10N (max)
Radial = 10N (max)
Cable:Screened, oil and salt water proof
Impulse Frequency:Up to 300KHz (depending on model)
Current Consumption:60mA (typical – without load)
