90FXA – IP65 OR IP66/IP67 UP TO 32 BIT UP TO 14 BITS PER TURN X 18 BITS MT

Please click here to download the 90FXA Datasheet

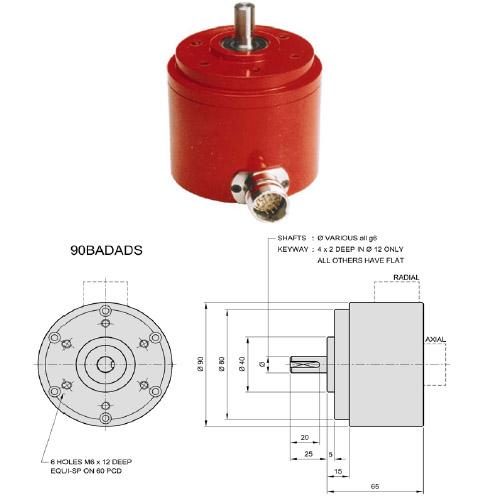

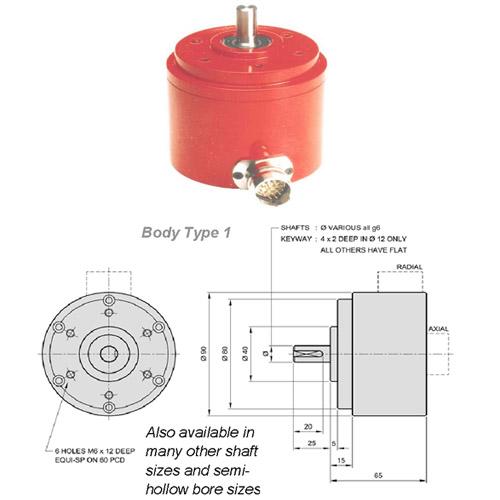

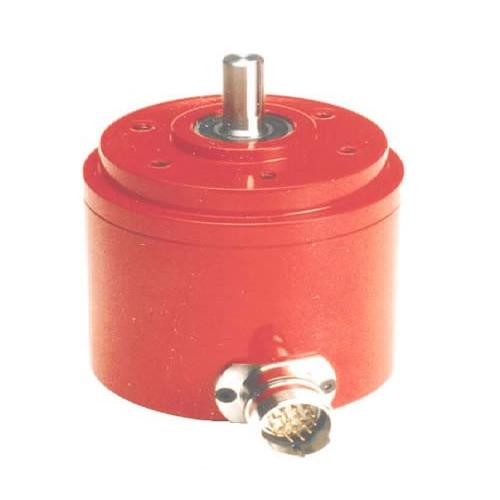

The 90SSI Series (in 90mm Frame Size) is an innovative Low Cost Multiturn, Heavy Duty absolute shaft encoder, machined from solid aluminium. It can be factory programmed up to a total of 32 bit resolution (14 bits per turn x 18 bit turns). For further information, click Product Enquiry below.

Categories: Absolute Encoders, SSI

Description
Product Enquiry

Description

Body:	Precision Machined Aluminium
Cover:	Precision Machined Aluminium
Shaft:	Stainless Steel
Bearings:	Ballraces
Shaft Sealing:	IP65: Sealed front bearing IP66/IP67: Specialist shaft seal
Protection:	Options: IP65 or IP66 / IP67
Operating Temp:	-20 to +85°C (-40° at extra cost)
Maximum Speed:	< 300 m/s² / 10 to 2000Hz
Torque:	< 1000 m/s² / 6ms
Inertia:	100gcm² (typical)
Shaft Loading:	Axial = 10N (max) Radial = 10N (max)
Cable:	Screened, oil and salt water proof
Current Consumption:	50 to 100mA
